Instance Type

Instance Type

An "instance" is a purchased bare-metal. Different instance types offer different compute capabilities, storage space, and network performance. You can choose the type that suits your service requirements.

Types of Greennode Bare-metal instance

Flavor name
CPU
RAM
GPU
Storage
Network
HGX H-100
2 x Intel Xeon Platinum 8462Y+Processor 60M Cache, 2.80GHz
32 x 64 GB
8 x NVIDIA H100 SXM 80GB GPUs
2 x 960GB M.2'' PCIe Gen 4x4 SSD SAMSUNG PM9A3, 8 x 7680GB 2.5'' PCIe 4.0 U.3 SSD
100 Gbps

Lifecycle

The lifecycle of a Bare-metal contains all states from its creation to deletion.

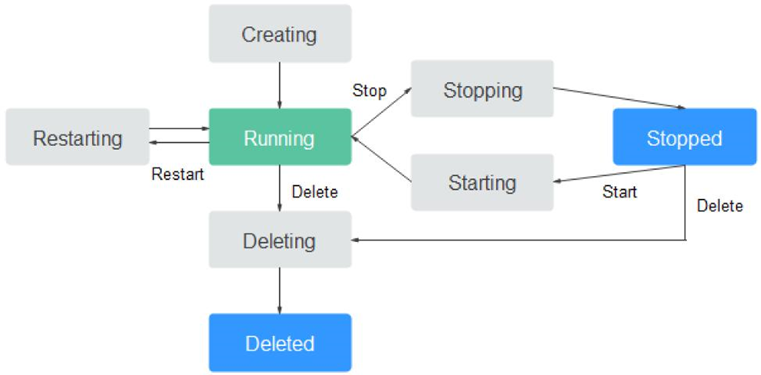

Figure 1 Instance states

Action
Attribute
Description
Instance Status
Creating
Intermediate state
A Bare-metal is in this state after you request for the BMS and before it enters the running state. If a BMS remains in this state for a long time, exceptions will occur. Contact the operation administrator to handle the exceptions.
Creating
Starting
Intermediate state
It is an intermediate state between Stopped and Running. If a BMS remains in this state for a long time, exceptions will occur. Contact the operation administrator to handle the exceptions.
SHUTOFF
Running
Stable state
A BMS is in this state when it is running properly. A BMS in this state can be used normally.
ACTIVE
Stopping
Intermediate state
It is an intermediate state between Running and Stopped. If a BMS remains in this state for a long time, exceptions will occur. Contact the operation administrator to handle the exceptions.
ACTIVE
Stopped
Stable state
A BMS is in this state after it is stopped successfully. A BMS in this state cannot be used.
SHUTOFF
Restarting
Intermediate state
A BMS is in this state when it is being restarted. If a BMS remains in this state for a long time, exceptions will occur. Contact the operation administrator to handle the exceptions.
REBOOT
Forcibly restarting
Intermediate state
A BMS is in this state when it is being forcibly restarted.
HARD REBOOT
Deleting
Intermediate state
A BMS is in this state when it is being deleted. If a BMS remains in this state for a long time, exceptions will occur. Contact the operation administrator to handle the exceptions.
ACTIVE/SHUTOFF/REBOOT/HARD REBOOT/ERROR
Deleted
Intermediate state
A BMS is in this state after it is deleted successfully. A BMS in this state cannot be used and will be removed from the system in a short time.
DELETED
Faulty
Stable state
A BMS is in this state when an exception occurs on it. A BMS in this state cannot be used. Contact the operation administrator to rectify the fault.
ERROR
